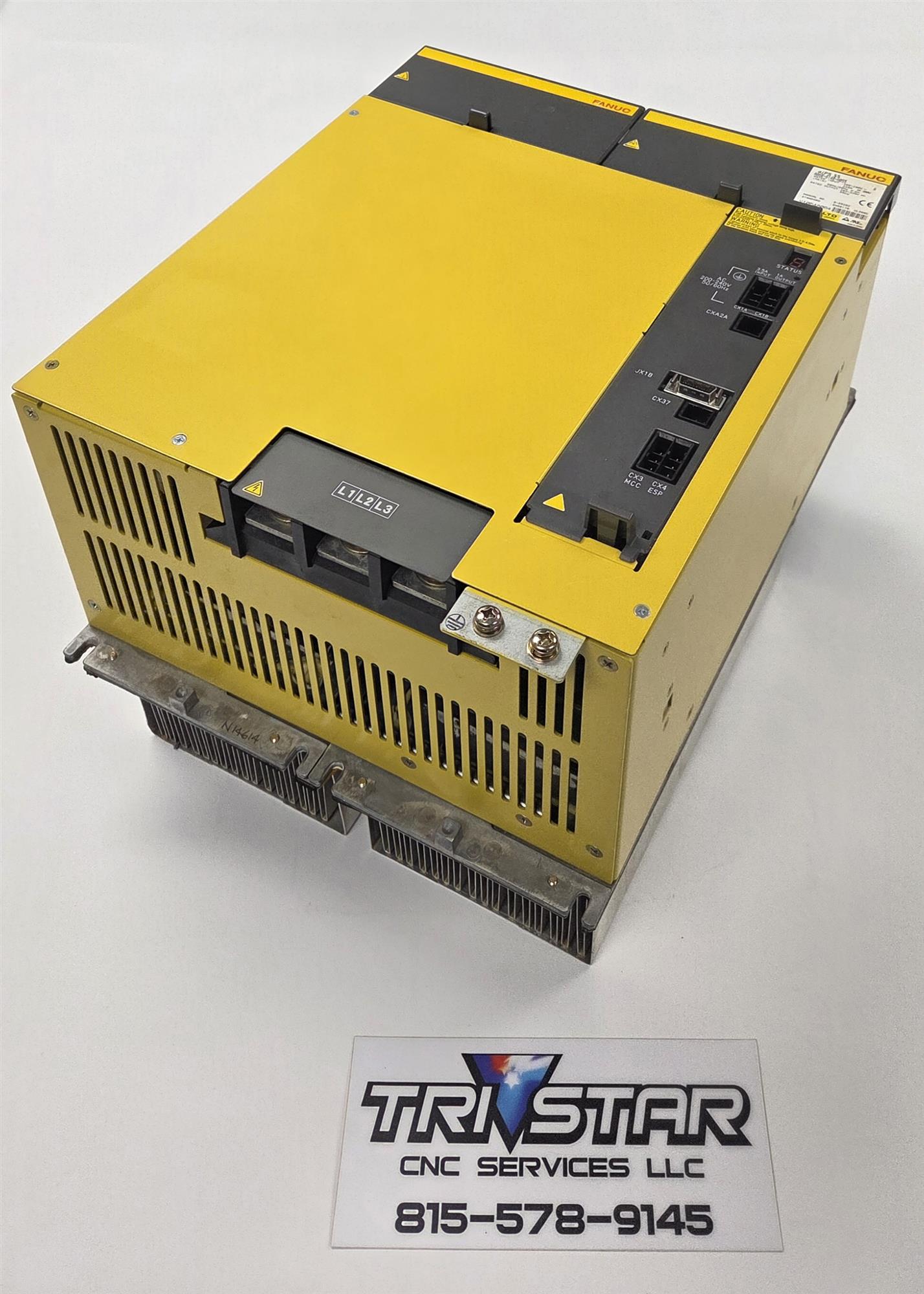

A06B-6140-H055 FANUC POWER SUPPLY MODULE AIPS-55

FANUC parts >> A06B-6140-H055 FANUC POWER SUPPLY MODULE AIPS-55

Part Name: FANUC POWER SUPPLY MODULE AIPS-55

Part Number: A06B-6140-H055

Contact Us

For parts repair or replacement, please fill out the form below and we’ll get back to you as soon as possible.

upload pdf

* Indicates a Required Field

Exchange Price

$5361

OUT OF STOCK
Non return of a repairable exchange part within 15 days will result in an additional invoice for the above exchange price.

Repair Price

$3598

Turnaround times for standard repairs are based on workload. Please contact Tri Star CNC services for emergency repair requirements.
Please contact Tri Star CNC Services to place an order.

FANUC POWER SUPPLY MODULE AIPS-55 A06B-6140-H055

FANUC A06B-6140-H055 power amplifiers can work at fast or slower paces. It has an exceptionally powerful power system that provides any amount of power that you need. This A06B-6140-H055 FANUC power supply module AIPS-55 has multi-stage power levels which can be changed.

FANUC
	A06B-6140-H055 Power Supply Alarm Error Codes

FANUC Power Supply Alarm Codes

Is your A06B-6140-H055 power supply module throwing an error? Check our list of FANUC servo alarm codes or call us for a solution.

In order to change these power levels, you use a manual switch that is located on the power supply module. Keep this device charged and at optimal power levels by plugging it into a wall outlet. Be careful that you use the recommended power amount for what you are supplying or it could lead to possible damage.

contact tri star cnc services

Fill out an Return Material Authorization (RMA) for repairs.

CNC FANUC repair techs at Tri Star fix or exchange the FANUC power supply module AIPS-55 to get your CNC machinery back up and running with no delay. With decades of experience servicing FANUC parts and components, you can trust Tri Star CNC to deliver reliable power supply repairs to your CNC FANUC components.

Contact FANUC repair specialists at Tri Star CNC Services in McHenry, Illinois for repairs or exchanges.

Alarm & error codes

Tri Star CNC Services can provide you with more information on the meaning of your alarms. We will provide a fault diagnosis and a dependable 1-year warranty if you require FANUC power supply repairs - or a new FANUC power supply module. Give us a call - phone support is FREE and we'll clearly define your options for parts repair or replacement:

Alarm CodeMessageDescription
0   Unit is ready
-(dash)   Unit is not ready and could be related to the unit or a machine side cause.
1 PSM-5.5 to PSM-11 The main circuit power module (IPM) has detected an overload, over-current, or control supply voltage decrease, over-current, or control supply voltage decrease. Internal cooling circuit failure,  Overload, Input supply voltage imbalance, IPM failure, or control supply voltage decrease of the power module.
1 PSM-15 to PSM-55 Over-current flowed into the input of the main circuit. Input supply voltage imbalance, IGBT defective.
2   Internal cooling circuit faulty.
3   The temperature of the heat sink has risen.
4   DC voltage (DC link) has dropped
5   The input power supply is abnormal (open phase) or the main circuit capacitor was not recharged within the specified time.
6   The input power supply is abnormal (open phase).
7   The DC link voltage is abnormally high.
8   The offset of the current detection circuit of the main circuit DC link is excessive.
PSMR The regenerative discharge unit is heated.
A   Internal cooling circuit faulty.
E   The input power supply is abnormal (open phase).
H PSMR The temperature of the regenerative resistor has arisen abnormally







Parts & Repair Warranty Information

Exchange parts and repaired parts include a 1-year warranty. Tri Star CNC, LLC warrants the COMPLETE ASSEMBLY REPAIR – not just the parts and labor.

Get more details on our warranty and please contact us for further support.
