Part Details

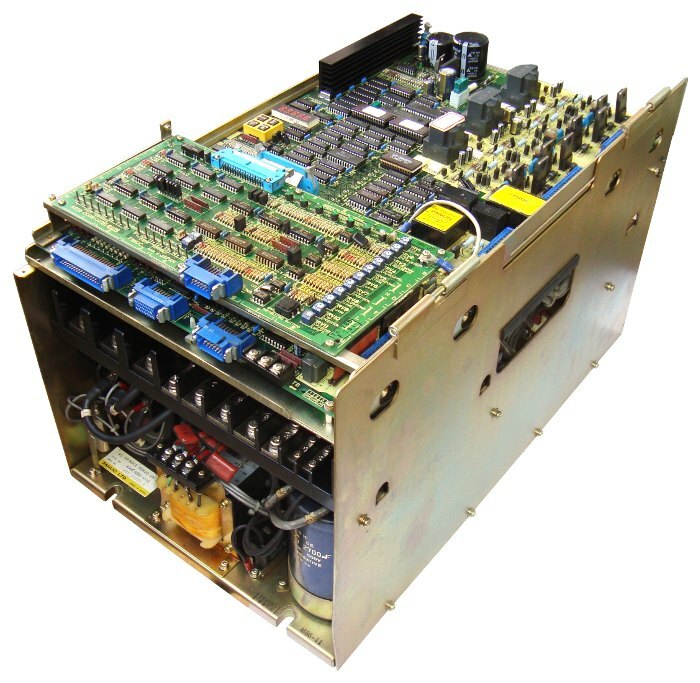

A06B-6055-H212#H543 VCU FOR 8VH

FANUC parts >> A06B-6055-H212#H543 VCU FOR 8VH

Part Name: VCU FOR 8VH

Part Number: A06B-6055-H212#H543

Contact Us

For parts repair or replacement, please fill out the form below and we’ll get back to you as soon as possible.

upload pdf

* Indicates a Required Field

Exchange Price

$5550

OUT OF STOCK
Non return of a repairable exchange part within 15 days will result in an additional invoice for the above exchange price.

Repair Price

$3519

Turnaround times for standard repairs are based on workload. Please contact Tri Star CNC services for emergency repair requirements.
Please contact Tri Star CNC Services to place an order.

VCU FOR 8VH # A06B-6055-H212#H543

The CNC repair technicians at Tri Star are there for your when your velocity control unit (VCU) is malfunctioning and needs replacing. With over 90 years of collective experience between our maintenance professionals, we diagnose and repair your malfunctioning CNC system and repair or replace broken parts.

Not only can we order OEM parts from the original manufacturer-we can engineer our own custom FANUC and GE FANUC replacement parts. Depending on the part we're replacing, it may actually cost less to have us engineer the part as opposed to ordering an OEM velocity control unit from the original manufacturer.

We provide component level repairs covering every possible problem with your CNC machinery. Our repair technicians specialize in FANUC and GE FANUC parts, such as VCUs, spindle amplifiers, power supplies, I/O printed circuit boards and many more. Outsourcing is not in our vocabulary. When we determine the faulty part, we bring it back to our facility in McHenry, Illinois and perform comprehensive testing on a closed loop control system. If we fail to diagnose the problem correctly and cannot repair the broken part, we will only charge a small clean and test fee.

When your production is stalled and manufacturing processes are grinded to a halt, you need the best CNC repair service technicians on the market to quickly and efficiently get your production line running again. Tri Star consistently provides the best repair service in the Midwest. Trust us to diagnose and repair your CNC machinery.

Error codes & alarms

When a FANUC spindle amp alarm is thrown chances are you'll need support from professionals experienced in FANUC component repairs. Give us a call - phone support is FREE and we'll clearly define your options for parts repair or replacement:

Alarm CodeDescription
01 Spindle motor over temp
02 Actual motor speed is largely deviated from the commanded speed.
03 DC link fuse has blown
04 Detected that the 3-phase input to the main circuit of the PSM has an open phase.
07 The motor rotates at a speed exceeding 115% (standard setting) of the maximum allowable speed.
09 Temperature of the heat sink of the SPM main circuit has risen to the set value.
10 Input power voltage dropped.
11 PSM detected that the DC link voltage was excessively high.
12 Excessively large current flowed into the DC link of the main circuit.
13 Memory inside the CPU is faulty.
15 Spindle switching operation sequence was not executed correctly.
16 The memory (RAM) is faulty.
17 NVRAM is faulty.
19 The offset voltage of the phase U current detection circuit is excessively high.
20 The offset voltage of the phase V current detection circuit is excessively high.
24 The power to the CNC is turned off. (This symptom does not represent an error.) Serial communication data transferred between the CNC and spindle amplifier module contains an error.
25 Serial communication between the CNC and spindle amplifier module stopped.
26 The sensor signal (for speed control) for Cs contour control has an error.
27 The sensor signal (position coder signal) for position control is abnormal.
28 The sensor signal (for position control) for Cs contour control is abnormal.
29 An excessive load (standard setting: load meter reading of 9 V) has been applied continuously for a certain period (standard setting: 30 seconds).
30 An excessively large current is detected at the input of the 3-phase main circuit of the PSM.
31 The motor failed to rotate as specified, and has stopped or is rotating at a very low speed.
32 LSI memory for serial communication is abnormal. A check is made when the power is turned on.
33 The PSM could not be charged within a specified time. PSM input has an open phase.
34 Parameter data outside the specifiable range was set.
35 The gear ratio set in a parameter exceeds the value range allowable for internal processing. This alarm is issued with a parameter related to orientation of magnetic sensor type.
36 Error counter overflowed.
37 After emergency stop signal input, the motor is accelerated without being decelerated. This alarm is issued also when the motor is not deactivated (the motor is not decelerated completely) when the acceleration/deceleration time (initial parameter setting: 10 seconds) has elapsed after emergency stop signal input.
39 The position where the one-rotation signal for Cs contour control is generated is incorrect. This alarm is not issued when the parameter indicated below is not set.
40 The one-rotation signal for Cs contour control is not generated.
41 The position where the one-rotation signal of the α position coder, BZ sensor, MZ sensor, α position coder S is incorrect.
47 The count value of α position coder signal pulses is abnormal. The pulse count value of the MZ sensor or BZ sensor is abnormal.

Contact our CNC repair professionals at Tri Star and get your production line back on track.

Parts & Repair Warranty Information

Exchange parts and repaired parts include a 1-year warranty. Tri Star CNC, LLC warrants the COMPLETE ASSEMBLY REPAIR – not just the parts and labor.

Get more details on our warranty and please contact us for further support.
